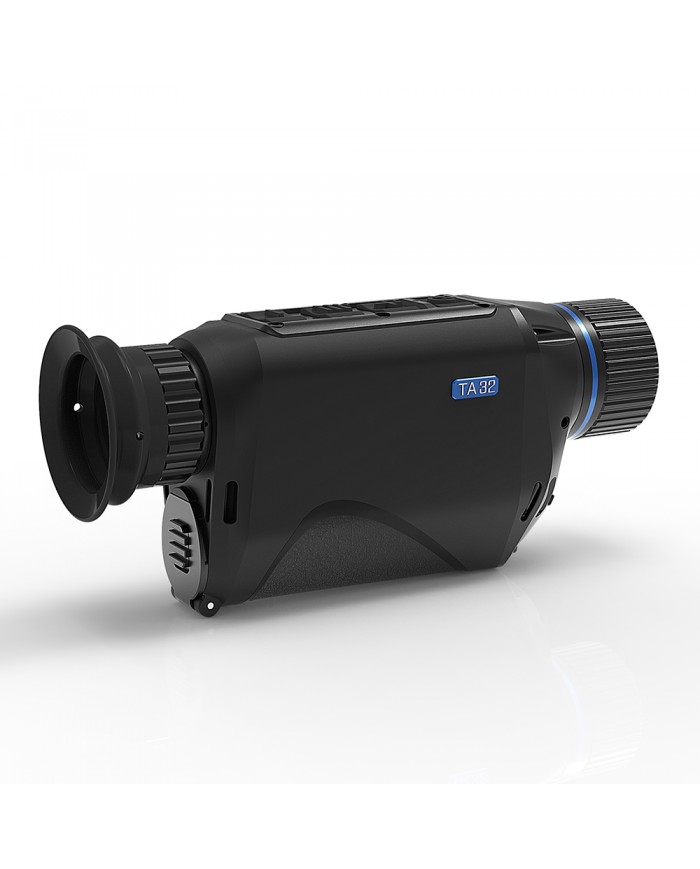

TA32 is a durable and high quality thermal handheld imager. Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even when the environment thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager. Built in Wi-Fi module provides connectivity of TA32 thermal imaging device with Android or iOS smartphones or tablets. The smartphone and thermal imager creates some unique features such as direct image streaming, downloading and sharing recorded files, users can share unforgettable moment with friends easily by their mobile devices. The 6 different color display modes enhance viewing in vary conditions. The “White Hot” mode is commonly used among users, “Black Hot” is providing the best observation effect when detecting wildlife at night. “Red Hot” helps to reduce or prevent overexposure of background light from exiting the eyepiece.“Iron Hot”, “Edge” and “Sky” are providing different visible effects and experience for users. TA32 is equipped with a powerful long-distance objective lens combined with a 384×288 and 12um pixel pitch high sensitive thermal imaging sensor,which provides an outstanding long-range detection ability. A standard 1.8m tall object can be detected up to 2000m away in an absolutely dark situation.
Key features:
Model | Detector | NETD | Lens | Optical Magnification | Frame Rate | Field Angele | Overall Dimension | Detection Distance | Weight (excluding battery) | |
TA32 | 12μm 384*288 | ≦25mk | 19/25/35mm | 2.7/3.5/4.5x | 50Hz | 13.8º/10.6º /7.5º |
145/153/159*68*44 | 1.2/1.6/2km | 288/300/328g |
General parameters:
Digital zoom | 1/2/4/6/8x | Focusing range |
1m-∞ | Exit pupil distance |
15mm | Diopter adjustment |
±5D | Battery | 18650 | |
Eyepiece resolution |
1024*768 OLED |
working temper |
– ∽ 30ºC +60ºC | Transmission mode |
WiFi/HDMI | Protective performance |
IP67 | Storage type | TF Card (max128G) |
|
Frame rate | 30 fps | Battery life | 5H (Max) | Video format | AV | Casing material | AL6061 + Plastic | |||
Voltage | 3.7V | Video resolution |
1440*1080 | Charging port type |
TYPE-C | Image mode | White Hot/RedHot/Black |
