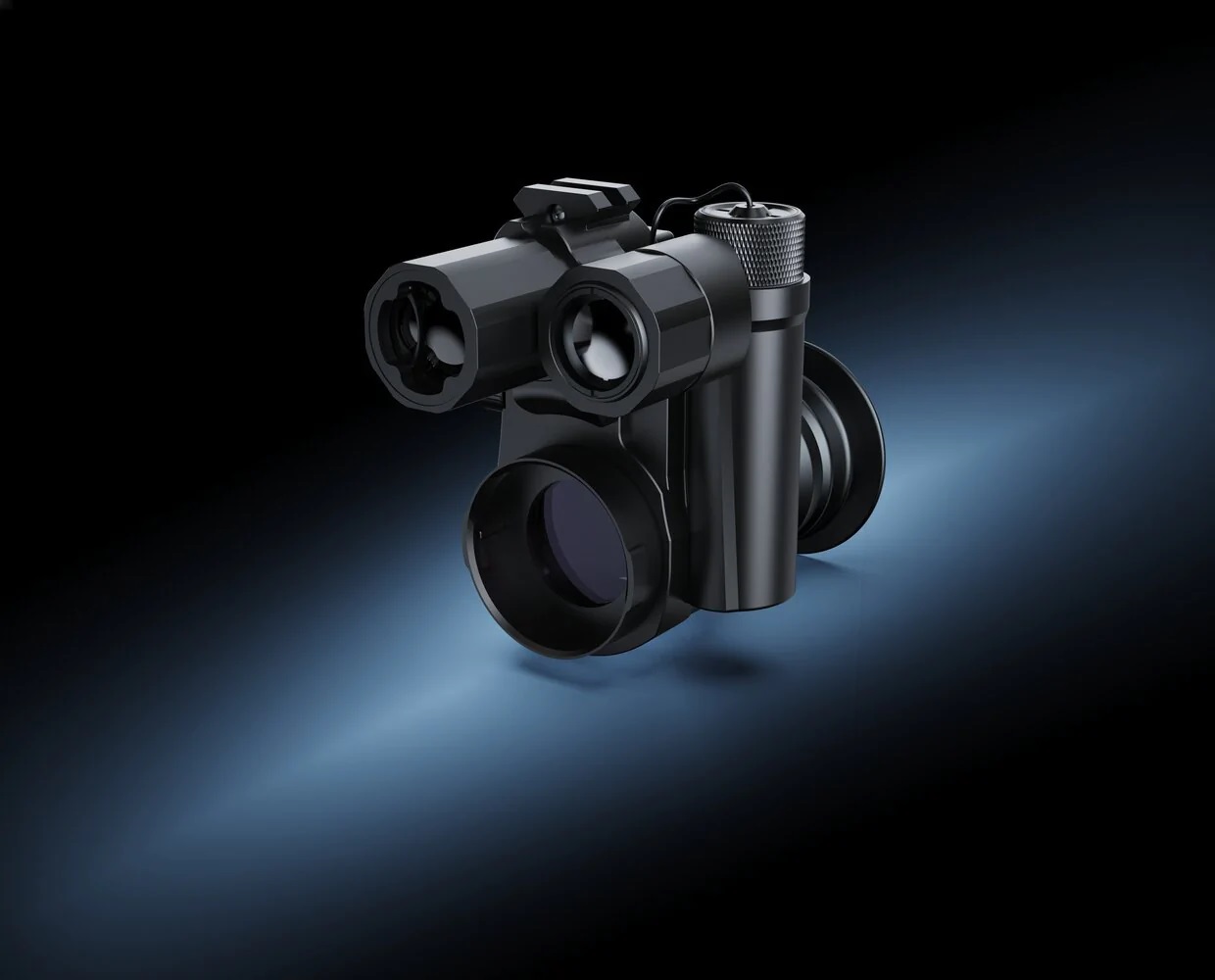

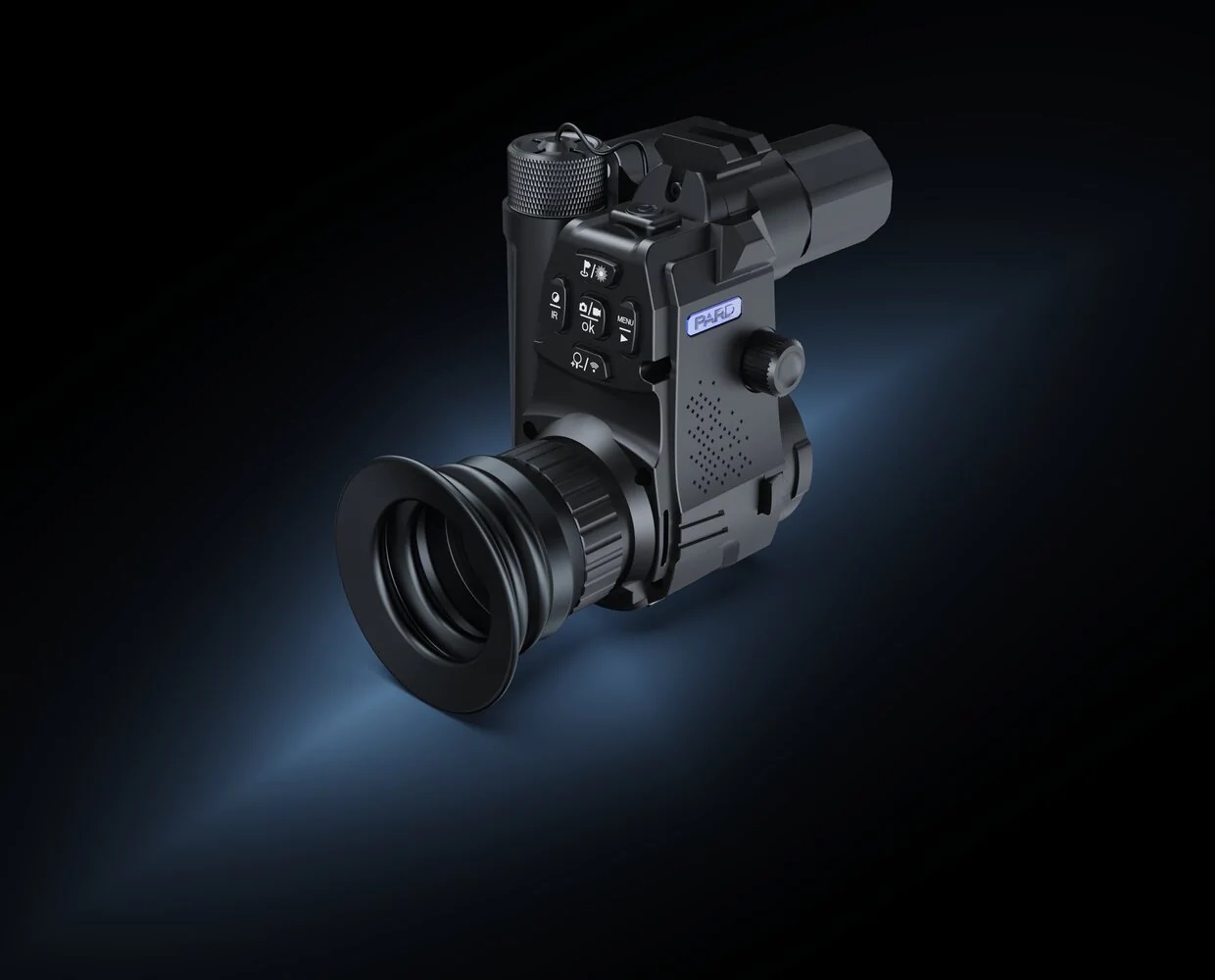

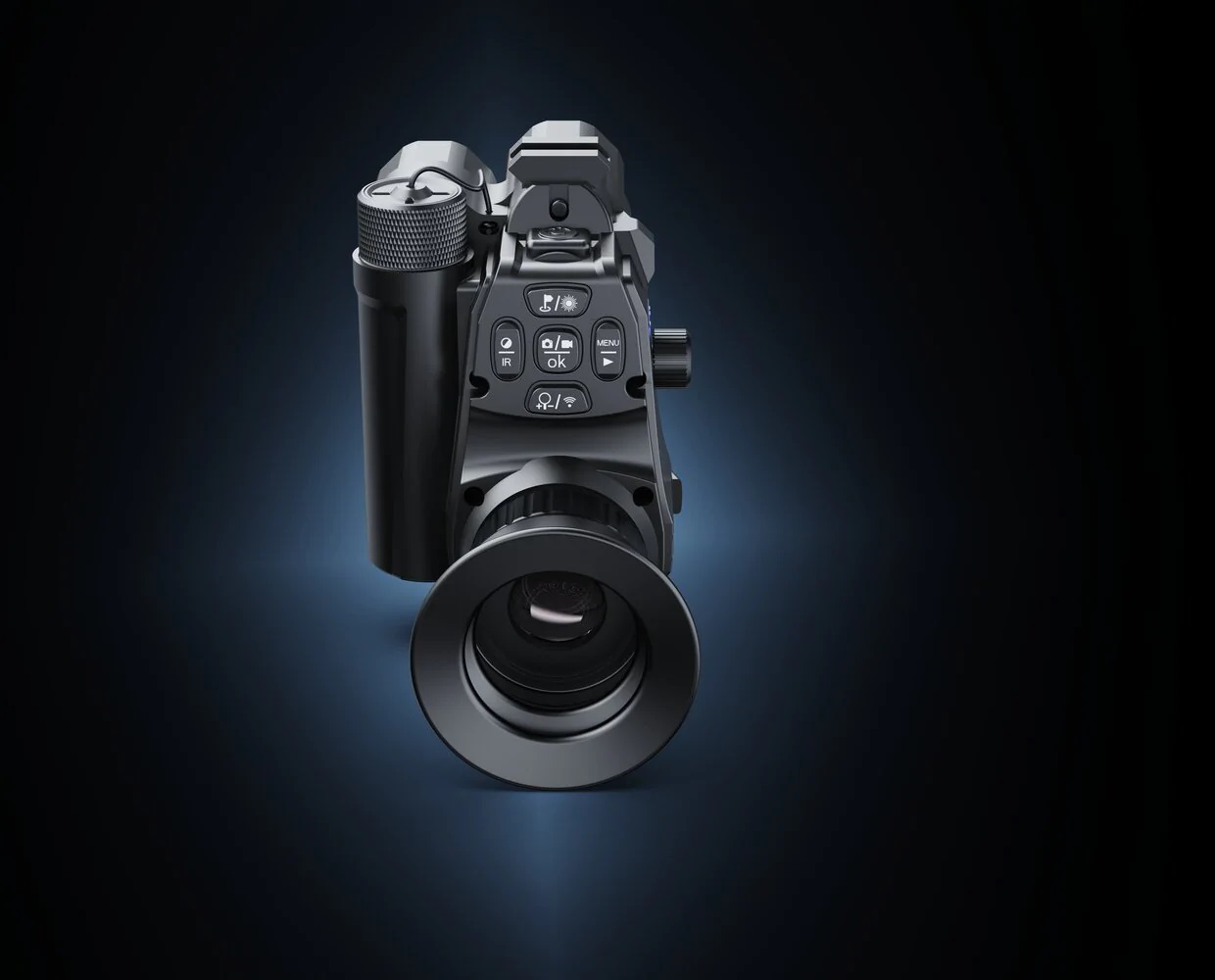

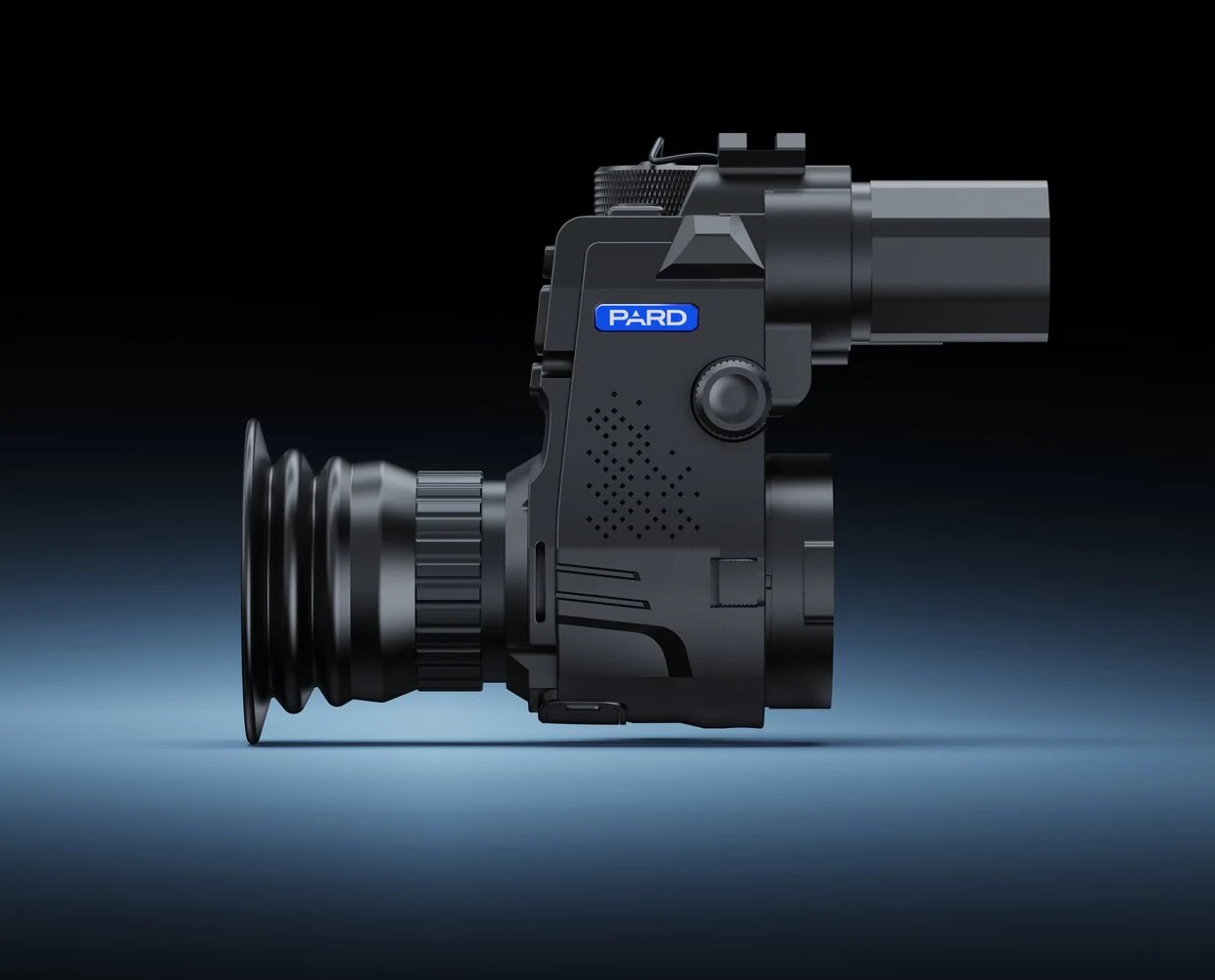

Pard NV007SP Clip-on Night Vision Scope

Pard NV007SP Clip-on Night Vision Scope is a light weight rear mounted night vision add on that allows you to quickly and easily convert your riflescope as night vision scope. Pard NV007SP is a redesign of the trusted NV007S with more details. NV007SP offers small size to bring better comfort for shooting. When shooting in low light, a highly sensitive 2560*1440 CMOS, 0.001 low lux image sensor provides sharper and higher clarity images. Comparing older models NV007SP avoids more effectively parallax errors of the scope!

Pard NV007SP Clip-on Night Vision Scope uses 18650 flat top battery.

Available with rangefinder/without and 850nm/940nm wavelengths. It´s your choice!



NV007SP Series Specifications

Model                                                                        NV007SP/NV007SP-LRF

Classification                                                            Night Vision(clip-on)



Sensor

Resolution(px)                                                              2560*1440

Sensitivity(Lux)                                                             0.001

Frame rate(fps)                                                             30

Optics

Objective lens(mm)                                                      22.5

Optical magnification(x)                                               4

Digital zoom(x)                                                              1-3.5

Continuous digital zoom(x)                                          4-14

Field of view (H×V)                                                      Horizontal 22°

Vertical 12°

Diagonal 25°



Eye relief(mm)                                                              25

Diopter adjustment ±                                                  5D

Focus range                                                                  3cm-∞

Adaptor diameter(mm)                                                 45/48

IR Illuminator

IR type                                                                           VCSEL

IR power(w)                                                                   5

IR illuminating level                                                      3 Levels

IR distance                                                                    350m/383yds

IR wavelength(nm)                                                       850/940

Display

Type                                                                               OLED

Resolution(px)                                                              1024*768

Color mode                                                                    Color/Black&white

Photo / Video

Photo resolution(px)                                                     2592*1944

Photo format                                                                 JPG

Video resolution(px)                                                     1920*1080

Video format                                                                 MP4

Storage                                                                          TF card(128GB MAX)

Main Function

LRF detection range                                                     1097m/1200yards

Range unit selection                                                     meter/yard

Red dot                                                                          Optional

Self-activated recording                                               Yes

Auto recording                                                              Yes

Loop recording                                                              Yes

Time stamp                                                                   Yes

Record audio                                                                 Yes

Beep sound                                                                   Yes

Exposure                                                                        Yes

Interfaces

USB Type-C                                                                  Yes

HDMI output                                                                 Yes

Connections

WiFi                                                                                Yes

Supported Apps                                                            PardVision

Power Supply

Battery type                                                                   18650 Li-ion Battery

Output voltage(V)                                                         3.7

Operating time(h,max)                                                 8

External power supply(V)                                             USB Type-C

Environmental Characteristic

Degree of protection                                                    IP67

Operating temp                                                             -25℃ ~40℃/-13℉~104℉

Recoil power(J)                                                             6000

Material

Housing                                                                         AL6061 & Plastic

Objective lens                                                               Glass

Measurement

Product dimension(L x W x H, mm)                            105*120*71/105*134*71

N.W/pcs(with/without battery, g)                               335/290 | 355/310
